9638B



9638B

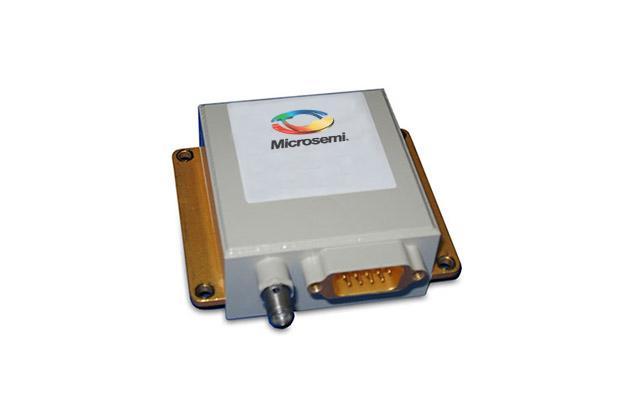

Low-Profile Ultra Miniature OCXO with Vibration Compensation



The 9638B is a low g military OCXO that uses electronic techniques to provide up to 40dB of compensation when operating under vibration, in a 1" high package.

Symmetricom's 9638B low g Sensitivity Military Oscillator is designed to withstand a wide range of operating environments encountered in next generation military navigation, radar, and secure communications systems.

High Performance Crystal Resonator


The 9638B is based around an ovenized 10 MHz, 3rd-overtone SC-cut crystal resonator enclosed in a hermetically sealed 2.07" x 2.187" x 1.01" H package.  Acceleration sensitivity of <2 E-11 per g (gamma) over wide frequency ranges can be achieved.

Superior Dynamic Phase Noise Performance


Symmetricom's similar product, the 9633, achieves superior dynamic phase noise performance by utilizing both electronic and mechanical compensation techniques to provide up to 40dB of compensation when operating under vibration. However, the 9638B uses only electronic compensation, to schieve a lower package height than the 9633.



Key Features

    10MHz Ouput

  <3e-10 per Day Aging

  <2e-11 per G Acceleration Sensitivity

  Low Phase NoiseApplications



Applications

The 9638B is designed for next generation military applications including:

  Navigation

  Radar

  Secure communications

  Ground tactical applications

  Airborne applications
