Software LCD Commander Lite

Software LCD Commander Lite


LCD Commander Lite is a software tool for accessing the files on the SD card within 4D Systems Intelligent Display Modules:

  • Communication via 4D Systems programming cable, removing SD card is not necessary
  • Currently supports: uLCD-24PTU, uLCD-28PTU and uLCD-32PTU
  • No additional software needs to be pre-installed on the SD card or display memory
  • Operating system: Windows XP SP2 or later
  • LCD Commander Lite is free-of-charge for private, commercial and academic use

Link for download of software: LCD Commander Lite

LCD Commander Lite is a software tool for accessing the files on a SD card within a 4D SystemsTM Inteligent Display Modules models: uLCD-24PTU, uLCD-28PTU and uLCD-32PTU. Communication is performed via the 4D Systems programming cable, which eliminates the need to remove the SD card from the display. LCD commander is especially useful for during the development to upload small executable and function files. Also, once the display is fixed in an enclosure, SD card may not be easily removable, so LCD commander can be used to perform a system upgrade.

LCD commander requires no additional software to be pre-installed on the SD card or display memory. LCD commander loads a small driver in the display RAM during the Connect procedure, which handles the communication and access to the SD card. After Disconnect, display is reset and driver is erased from RAM memory, returning to the original program stored in display flash memory.

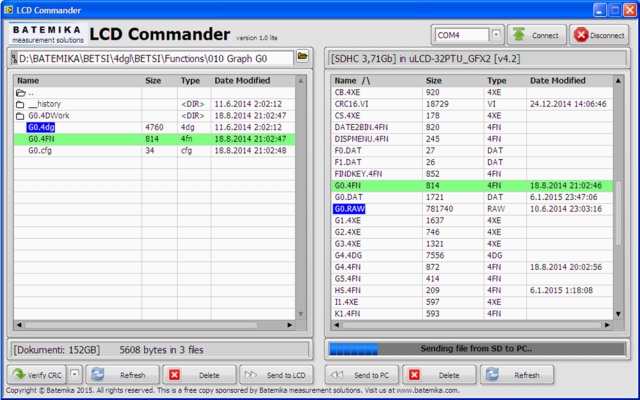

LCD Commander enables sending files to and from SD card, deleting files and verifying the files. The transfer rate for copying file to and from SD card is approximately 11 KB/s. This makes it useful for files up to approximately 1 MB, resulting in transfer time of approximately 100 seconds. For extremely large files, traditional method of removing the SD card may be more efficient.

LCD Commander Lite is freeware and you may download it and use it free of charge. By downloading and installing LCD Commander Lite, you agree with the following license terms:
Use of LCD Commader Lite is free of charge for private, commercial and academic use.
You may post a link or a mirror copy of the installation on your website, as long as you clearly state the copyright 'Copyright © 2015 Batemika.All rights reserved.' and make a reference to the originating website
You may not include LCD Commander Lite as part of your commercial product without a written consent from Batemika measurement solutions.
Reverse engineering and making of derivative products is prohibited and is subject to prosecution.
