1:10 / 1:100 Differential Probe

1:10 / 1:100 Differential Probe


1:10 / 1:100 Differential Probe

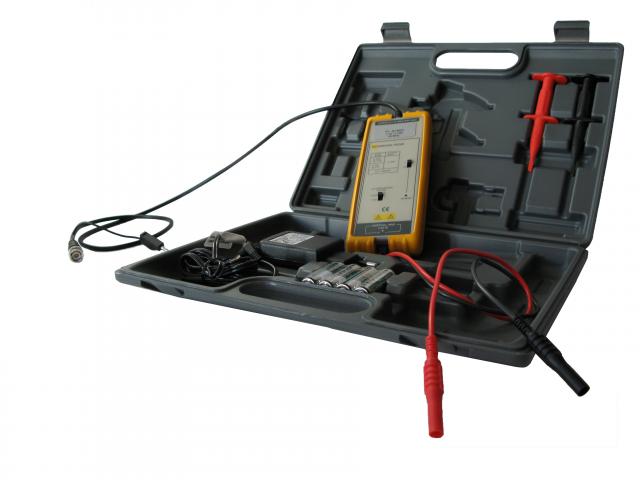

With the offered active differential probe voltages up to 600V can be connected to the Bode 100. Since the measurement input of the probe is potential free it is possible to avoid grounding problems and to measure circuits which input and output have no common ground.

Key features

  • Enables measurements in circuits with high voltages up to 700Vrms
  • Avoids grounding problems
  • CAT III compliant measurement input (maximum input voltage 1000Vrms)
  • CE compliant
  • Powered by mains adapter or battery cells
  • Can be perfectly used with the Bode 100

Some technical data

  • Usable frequency range: DC to 25MHz (-3dB)
  • Attenuation ratio: 1/10 or 1/100
  • Accuracy: +-2%
  • Input voltage (differential range): 70Vrms @ 1/10; 700Vrms @ 1/100
  • Input voltage (common mode range): 700Vrms @ 1/10 & 1/100
