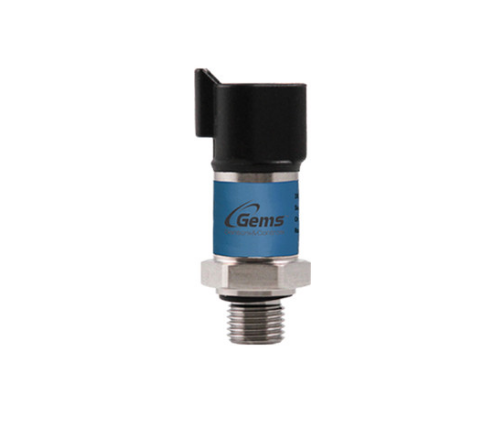

1100 Series Pressure Sensor

• Exceptional Long Term Stability
• 0-150 psi to 0-10000 psi Ranges (0-10 bar to 0-700 bar)
• High Proof Pressures with All Stainless Steel Wetted Parts
• Best in Class Price to Performance Ratio in a Small Package Size
• Proven Thin Film Sensor Technology

The 1100 is a low cost, high quality all stainless steel media isolated pressure sensor for measuring gases and liquids compatible with stainless steel. Suitable for industrial, refrigeration, hydraulics, off-road, construction and agriculture applications, the 1100 pressure sensor has been designed specifically for those applications with demanding price and performance requirements.

Product Line

• Pressure Sensors & Switches

Output

• 0.5-4.5 V

Pressure Range

• 0-3000 psiS

Pressure Fittings

• 7/16-20 External (SAE #4, J1926-2)
• 7/16-20 UNF

Pressure Type

• Sealed Gauge

Full Scale Pressure

• 3000 psi

Excitation

• 6.5-30V

Proof Pressure

• 3X Full Scale

Burst Pressure

• 10X full scale

Electrical Termination

• Deutsch DT04-3P
• Deutsch DT04-4P

Optional Restrictor

• No Restrictor

Product Family

• Pressure Sensor

Product Type

• Pressure Sensors
