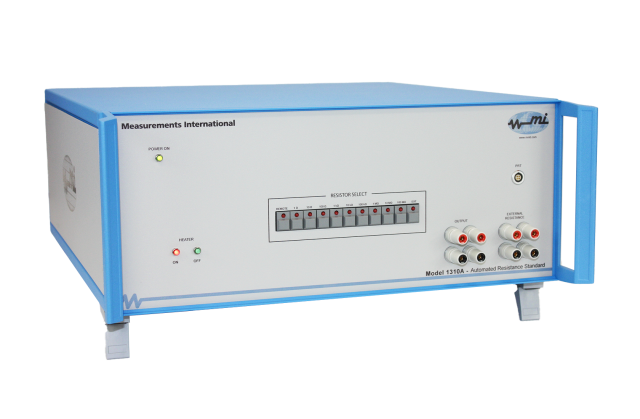

1310A Automated Resistance Standard

Developed and designed by metrologists for metrologists and calibration technicians

• Internal resistance elements in a temperature-controlled chamber
• Single output cable for direct plug-in
• 9 primary-level internal reference standards
• Customizable
• Front panel or GPIB controlled

Transform your resistance standards calibration with MIs latest innovation: the 1310A Automated Resistance Standard. This user-friendly, cost-effective solution provides military organizations, national, and third-party labs with unparalleled accuracy and confidence in their resistance standards.

Designed with input from a world-renowned National Measurement Institute, the 1310A delivers exceptional results, making it the go-to choice for organizations looking to take their calibration to the next level. Upgrade your calibration process today, and trust in the precision and reliability of MI's automated resistance standard.

9 resistors (1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ), 1 external channel

• Complete line of decade value standards in one temperature-controlled enclosure.

Hand-picked high precision resistors in temperature-controlled chamber

• Delivers highest level of performance from the internal high-precision resistors.

Internal resistance elements in a temperature-controlled chamber

• Excellent stability and extremely low-temperature coefficients.

Single output cable for direct plug-in

• Easy operation. No changing wires.

Built for calibration of calibrators and DVMs

• Best stability: < 2.5 μΩ/Ω/year.

Built-in 4-terminal scanner

• Combines two instruments into one.

External channel

• Connect to resistance value of your choice.

Front-panel or GPIB controlled

• Simplifies operation.

Internally-mounted temperature sensor PT100

• Connect to front panel to monitor internal oven.

Scanner Specifications

Operation

• 4-terminal

Error Contribution

• < 20 nV

Contact Configuration

• Two-coil latching relay

Max Carrying/Switching Current

• 4/2 A @ < 30 V (DC)

Maximum Working/Switching Voltage

• 200/20 Volts @ < 100 mA (DC)

Contact Resistance

• < 0.05 Ω

Expected Relay Life

• 108 operations

Insulation Resistance

• 1010 Ω @ 200 V
