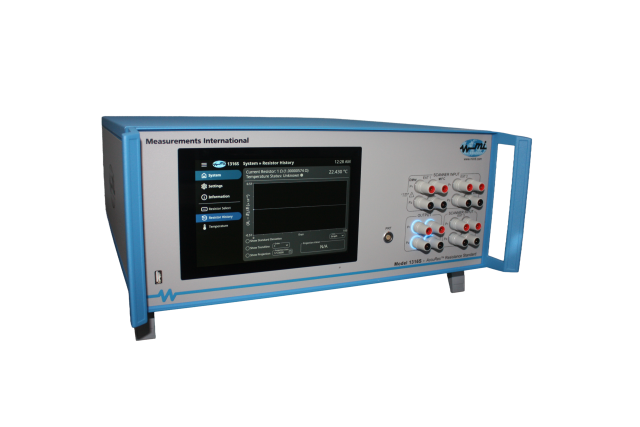

1310B-X AccuRes Resistance Standard

• Combines primary-level resistors with scanner and temperature-controlled chamber
• 11 standard decade values and 6 selectable user values
• Touchscreen controller shows calibration value and drift information
• Designed as a DC calibration hub for automated calibrator and DMM stations
• 0.1 Ω to 1 GΩ
• 0.1 Ω capable of 3 A

The 1310B-X was designed to meet the requirements of automated DVM and calibrator calibration. Built around a low-thermal scanner and temperature controlled enclosure, the 1310B-X provides 11 high-stability standard reference resistors ranging from 0.1 Ω to 1 GΩ. The 1310B-X also allows users to add up to six additional resistor values to the unit. The system also includes two external channels that function as a connection hub for auxiliary AC and DC calibration equipment.

11 resistors values ranging from 0.1 Ω up to 1 GΩ. With (6) Additional selectable values

• Complete line of decade value standards in one temperature-controlled enclosure.

User-friendly touch screen

• Resistor tracking and history graph.

Internal resistance elements in a temperature controlled chamber

• Excellent stability and extremely low-temperature coefficients.

Single output cable for direct plug-in

• Easy operation without the requirement for changing wires.

Calibrate calibrators and DVMs

• Best stability: < 2.5 μΩ/Ω/year.

Built-in 4-terminal scanner

• Combining multiple instruments (resistors, air bath, scanner) into one easy-to-use instrument.

Two external channels

• Connect to the resistance value of your choice.

Front-panel or GPIB-controlled

• Simplified operation.

Internally-mounted PT100 temperature sensor

• Connect to the front panel to monitor the internal oven.

Scanner Specifications

Operation

• 4-terminal

Error Contribution

• < 20 nV

Contact Configuration

• Two-coil latching relay

Max Carrying/Switching Current

• 4/2 A @ < 30 V (DC)

Maximum Working/Switching Voltage

• 1000/220 V @ < 100 mA (DC)

Contact Resistance

• < 0.05 Ω

Expected Relay Life

• 108 operations

Insulation Resistance

• 1012 Ω
