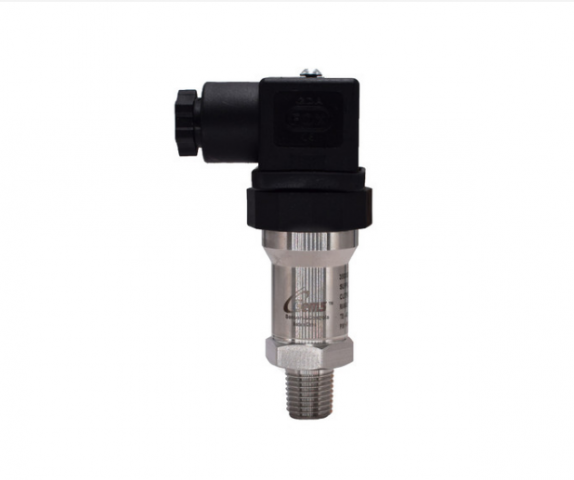

3500 Series Pressure Transducer

• 0-5 to 0-600 psi pressure ranges (0-0.35-0-40 bar)
• 0.25% Full-Scale Accuracy
• < 0.2% Long Term Drift
• Choice of outputs electrical connections and pressure ports
• Operating temperature up to 257°F (125°C)

3500 Series Pressure Sensors feature all-316 stainless steel wetted parts and a wide choice of electrical outputs as well as both electrical and pressure connections making this suitable for most applications without modification. Their small size makes the 3500 Series sensors ideal for installation where space is at a premium. The MMS sensor used in these sensors quickly reaches full accuracy at power-up, making this series excellent for remote, battery-powered installations, where power draw and time must be minimized.

Product Line

• Pressure Sensors & Switches

Output

• 4-20 mA
• 0.5-4.5 V
• 0-5 V
• 1-6 V
• 1-5 V
• 0-10 V
• 0.5-4.5 V Ratiometric
• 1-10 V
• 0-5 V

Pressure Range

• 0-1 bar
• 0-10 bar
• 0-10 PSI
• 0-100 PSI
• 0-15 PSI
• 0-150 PSI
• 0-16 bar
• 0-2.5 bar
• 0-200 PSI
• 0-25 bar
• 0-30 PSI
• 0-350 mbar
• 0-4 bar
• 0-40 bar
• 0-400 PSI
• 0-5 PSI
• 0-50 PSI
• 0-6 bar
• 0-600 PSI
• 0-1.6 bar
• 0-200 psiG
• 0-250 PSI
• 0-600 psiG
• 0-700 mbar
• 0-4 barG

Pressure Fittings

• 1/4"-18 NPT External
• 1/8"-27 NPT External
• 7/16"-20 External (SAE #4, J1926-2)
• G1/4 External
• G1/4 external Soft Seal
• M12 x 1.5 (<1000 bar, 15000 psi)
• 1/4-18 NPT External
• 1/8-27 NPTF External (Dryseal)
• 7/16"-20 External (SAE #4, J514)
• G1/8"-27 External

Pressure Type

• G,S
• Absolute
• Compound
• Gauge
• Full Scale Pressure
• 100 psi

Excitation

• 6.5-30V
• 10-30V
• 12-30V
• 5V
• 8-30V
• 7-30V

Proof Pressure

• 2X Full Scale
• 3X Full Scale

Burst Pressure

• 20X Full Scale
• 40X Full Scale

Measurement Units

• PSI, Bar

Compensated Temperature Range

• -4 to 185 °F

Electrical Termination

• Deutsch DT04-4P
• Industrial DIN 9.4mm
• Industrial DIN 9.4mm (alternate pin out)
• Large DIN
• M12 x 1P (4-pin)
• Packard MetriPack
• M12 × 1
• Industrial DIN 9.4mm (mating connector not supplied)

Cable Length

• No Cable

Optional Restrictor

• No Restrictor
• Restrictor

Product Family

• Pressure Transducer

Product Type

• Pressure Sensors
