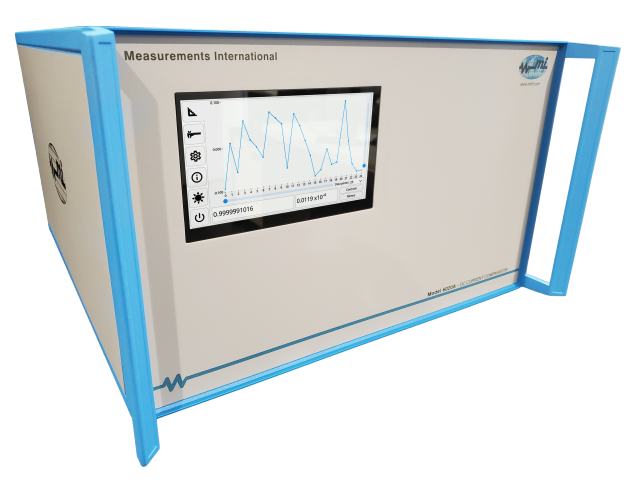

6020A Resistance Ratio Bridge

• Next generation in bridge technology:
  • NEW microcontroller for improved speed and functionality
  • NEW capacitive touchscreen with enhanced design and easy-to-use operation
  • NEW zero filter
  • NEW 1 kHz sample rate
  • NEW selectable settle time and measurement time
  • NEW MI software package
• Range: 0.001 Ω to 13 kΩ
• Best accuracy: < 0.025 µΩ/Ω
• Maximum ratio: 14:1
• IEEE488.2 Standard
• System integration with Measurements International (MI) Matrix Scanners and High-Current Range Extenders
• Two selectable measurement algorithms

DCCT based

•  Provides excellent stability and range linearity.

Fast reversal rates

• Reversal rates as fast as 4 seconds without affecting bridge accuracy.

Quick measure mode

• First measurement in < 30 seconds.

New mircocontroller

• Improved speed and functionality for efficient unit operation.

National and primary lab continuity

• Used by leading NMIs, as well as Energy, Defense, Aeronautical and Space organizations.

Up to 10,000 A

• Can be expanded for shunt calibrations and DCCTs.
