9332 Precision High Current Shunts

• Precision high-current shunts
• Based on NMI design with controlled current distribution
• Long-term stability: < 10 × 10-6
• Air- or oil-cooled applications
• Special values available on request
• Implanted thermocouples
• Improved power dissipation

Series of Precision High Current Shunts from 1 A to 3000 A with Optional Air Moving Fans

The model 9332 series of 4-terminal DC current shunts were developed for measuring precision DC current levels to 3000 A. After many years of research in low-value resistance materials, the 9332 series of current shunts ensures  reliable performance. Achieve accuracy of less than 0.01 % at full power.

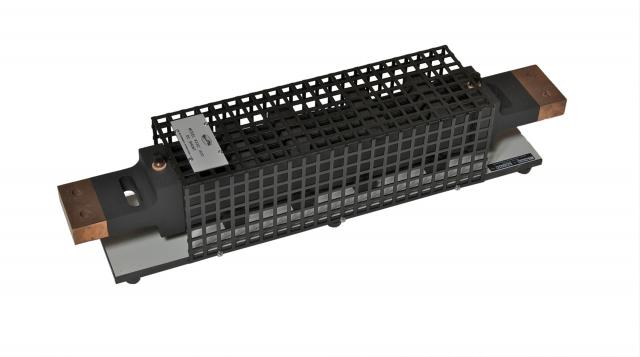

The shunts are constructed from specially selected elements which are soldered into copper ends using a special low-thermal solder. The element then goes through a process of annealing which ensures the best performance without introducing self-heating errors with improved temperature coefficients. The shunt, designed to operate in the air at full power, is then covered with a decorative perforated cover allowing air to escape during self-heating and to protect the elements from physical damage. The copper ends are specially designed to force the current to be evenly distributed through the elements so that the surface area can dissipate the specified power in the air.

Special considerations have been given to the process of curing the element and reducing temperature coefficients. Optimum surface area dissipates the maximum specified power. The annealing process gives the shunt excellent long term stability so that these shunts can be used in the air at full current. For increased performance as a standard resistor, they can be placed in the MI model 9300A Air Bath.

Current connections are made at each end of the shunt, while low-thermal potential connectors are used for measuring the output voltage. Only the current connector will vary depending on the size of the shunt. Special values are also available.

The 9332 forced air assembly is also available for all shunts. The number of fans will vary depending on the length of the shunt. The forced air assembly attaches to the shunt guard and the air is blown down and away from the shunt. The use of the 9332 forced air assembly keeps the power coefficient of the shunt low for all currents.
