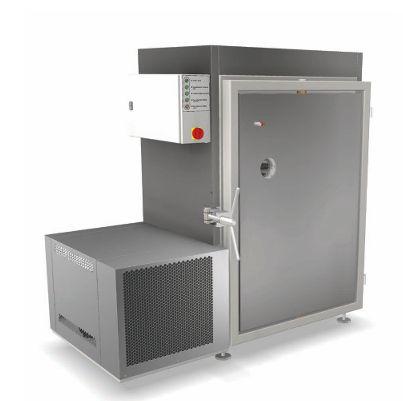

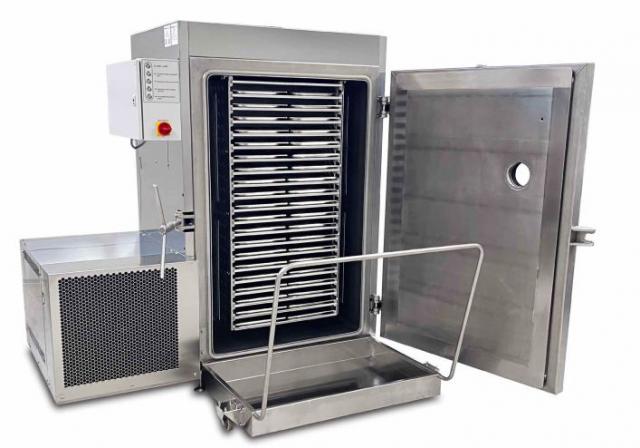

Compact Industrial freeze-dryer LIO-80 FP
Compact Industrial freeze-dryer LIO-80 FP
Delivery includes:
- 1x LIO-80 FP
- Other accessories per further discussion
Parameters:
| External dimension (WxDxH) in mm | 1905 x 1150 x 1890 |
| Ice condenser capacity (max material) | 80 kg |
| Ice condenser temperature (°C) | - 52 |
| Ice condenser defrost | Reverse ref. system less than 30 min |
| Number of shelves | 20 +1 guardian |
| Shelf size (WxD) in mm | 660 x 530 |
| Total shelf surface | 0.349 m2 x 20= 7 m2 |
| Shelf spacing | 50 mm |
| Shelf heating and cooling | YES, fluid circulation |
| Cooling | Air-cooled hermetic single compressor system |
| User interface | WIFI - web and manual |
| Door | Metal with observation port |
| Data and cycle report | Shelf temperature, Condenser temperature, Vacuum |
| Vacuum pump | Recommended dry technology |
| Power supply | 3 x 400 V 50 Hz, min. 32 Amp fuse |
| Wattage (kW) | 13 freezedryer (without the vacuum pump) |
| ≈ Mass (Kg) | 1000 (without the vacuum pump) |
| Shipping box (WxDxH) in mm | 2070 x 2310 x 2080 |
