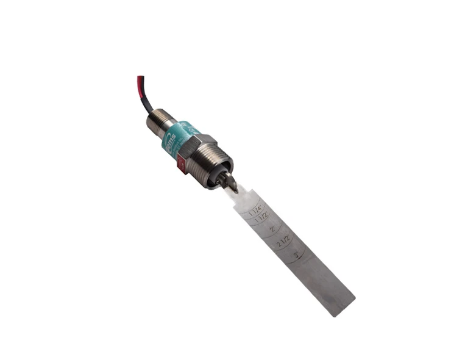

FS-550 Series Paddle Flow Switch

• Engineered for Positive Liquid Flow Detection at Pressures to 2000 psig (137.9 bar)
• Unique; Patented Cam Design Assures Low Pressure Drop and Does not Require Bellows; Seals; or Mechanical Linkages
• Minimum In-Line Restriction; Paddle Pivots to Move Out of Liquid Path with Increasing Flow
• Pipe Line Size: 1 1/4" and up
• Primary Construction Material: Stainless Steel or Brass
• Setting Type: Fixed

FS-550 Series Flow Switches sense liquid flow in either direction to monitor flow/no-flow conditions and are supplied in two paddle lengths. The paddle is trimmed during installation to permit switch actuation at the desired flow rate. As flow increases, the paddle of the switch pivots to move out of the liquid path, producing less than 3 psig (.21 bar) of pressure drop regardless of pipe size. Applications include: compressors, heat exchangers, turbines, engines, boilers, chillers, valves, pumps, and regulators.

Product Line

• Flow Sensors & Switches

Sensor Type

• Paddle

Body Material

• 316 Stainless Steel
• Brass

Wetted Material

• Brass
• Teflon
• Ceramic
• 316 Stainless Steel

Maximum Operating Pressure

• 2000 PSI

Flow Setting Range

• Adjustable

Set Point Accuracy

• 25%

Switch Type

• SPDT (20 VA)

Process Connection

• 1" NPT Male

Electrical Termination

• 24" Long, 18 AWG, Polymeric Leads
• 3-Pin Junction Box

Product Family

• Flow Switch

Product Type

• Paddle

Maximum Operating Temperature [°F]

• 300 °F

Minimum Operating Temperature [°F]

• -30 °F
