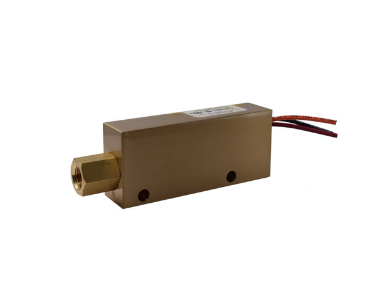

FS-926 Series Piston Flow Switch

• Flow Rate Settings: Liquids - 50-300 cc/min.; Air/Gases - See Chart at Bottom of Page
• Port Size: 1/4" NPT
• Primary Construction Material: Brass or Stainless Steel
• Setting Type: Fixed

FS-926 Series Flow Switches are designed for liquids or gases and features a special low-flow piston. This additional piston allows the detection of fluid flow as low as 50 cc/min. FS-926 switches are ideal for applications such as gas sampling, liquid or gas leak detection, or chemical injection. These switches provide accurate detection of excessive or insufficient flow rates in such applications as: protecting against loss of fluid flow in hydraulic systems, assuring proper coolant flow in semiconductor processing equipment, monitoring high pressure lubrication systems, and ensuring proper air flow in water/waste systems.

Product Line

• Flow Sensors & Switches

Sensor Type

• Piston

Body Material

• 316 Stainless Steel
• Brass

Wetted Material

• Brass
• 316 Stainless Steel
• Viton
• Polysulfone
• Epoxy
• 316 Stainless Steel

Maximum Operating Pressure

• 1000 PSI

Proof Pressure

• 2500 PSIG

Burst Pressure

• 5000 PSIG

Flow Setting Range

• FIXED

Set Point Accuracy

• ±10%

Set Point Differential

• 0.15

Switch Type

• SPDT (20 VA)

Process Connection

• 1/4" NPT Female

Electrical Termination

• 24" Long, 18 AWG, Polymeric Leads

Recommended Filtration

• 50 Micron

Product Family

• Flow Switch

Product Type

• Piston

Minimum Operating Temperature [°F]

• -20 °F
