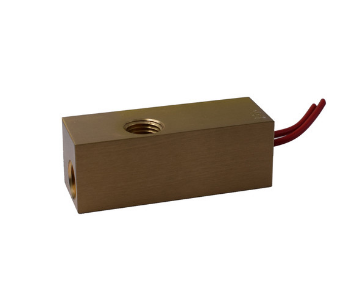

FS-927 Series Piston Flow Switch

• Flow Rate Settings: 0.10 GPM to 1.50 GPM
• Port Size: 1/4" NPT
• Primary Construction Material: Brass; Stainless Steel
• Setting Type: Fixed

FS-927 Series Flow Switches are compact switches that measure only 1" x 2-3/4" (25 mm-70 mm) and are ideal for use where space is at a premium. Designed for use with water and oil, these switches are suitable for high volume OEM applications. They are ideal for coolant or lubricant flow monitoring in portable equipment and many other applications with space constraints.

Product Line

• Flow Sensors & Switches

Sensor Type

• Piston

Body Material

• 316 Stainless Steel
• Brass

Wetted Material

• Brass
• 316 Stainless Steel
• 316 Stainless Steel

Maximum Operating Pressure

• 1000 PSI

Flow Setting Range

• FIXED

Set Point Accuracy

• ±15%

Set Point Differential

• 0.2

Switch Type

• SPST, N.O. (20VA)
• SPST, N.C. (20VA)

Process Connection

• 1/4" NPT Female

Electrical Termination

• 24" Long, 18 AWG, PVC Leads

Recommended Filtration

• 50 Micron

Product Family

• Flow Switch

Product Type

• Piston

Minimum Operating Temperature [°F]

• -20 °F
