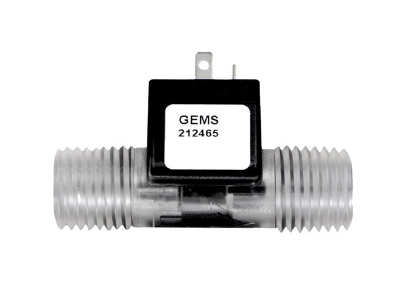

FT-210 Series Turbine Flow Sensor

• Low Flow Rates .1 to 2.5 LPM
• Accuracy ±3% of Reading
• Lightweight Turbine Ensures Fast Startup

FT-210 Series is a low flow turbine sensor that features proven turbine technology in a small package. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to on/off dispensing applications for low flow applications.

Product Line

• Flow Sensors & Switches

Sensor Type

• TurboFlow

Body Material

• Nylon 12

Wetted Material

• Nylon 12
• PTFE (15% Graphite)

Maximum Operating Pressure

• 350 PSI

Supply Voltage

• 5 VDC to 24 VDC at 8mA

Output

• NPN Sinking Open Collector at 20mA, max.

Standard Flow Accuracy

• ±3%

Standard Flow Range

• .026 - 0.65 (83200 pulse/gallon)

Low Flow Accuracy

• ±3%

Mounting Type

• 1/4" G
• 1/4" NPT Male

Electrical Termination

• 3 Pin DIN 9.4mm spacing (1" high)

Recommended Filtration

• 50 Micron

Product Family

• Turbine Flow Sensor

Product Type

• Turbine
