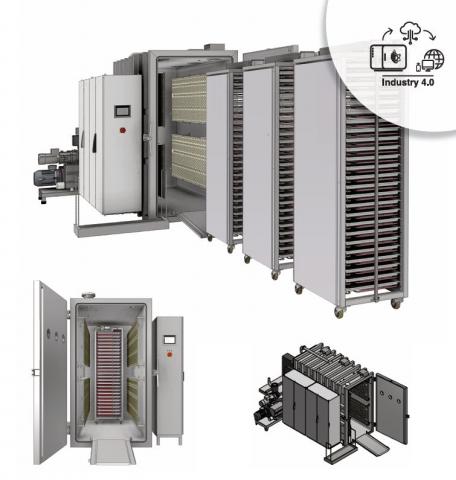

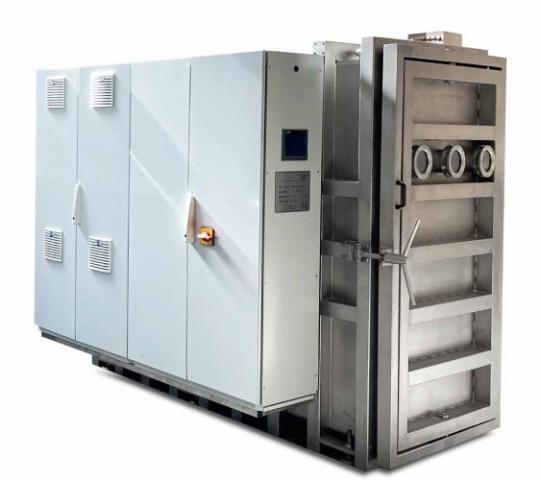

High capacity freeze-dryer LIO-300 FP
High capacity freeze-dryer LIO-300 FP
Delivery includes:
- 1x LIO-300 FP
- Accessories per further requirements
Parameters:
| External dimension (WxDxH) in mm | ≈ 2600 x 5000 x 2300 |
| Ice condenser capacity (max material) | 300 kg |
| Ice condenser temperature (°C) | - 50 |
| Ice condenser defrost | Reverse ref. system less than 30 min |
| Number of trolleys | 3 |
| Number of shelves | 25 per trolly |
| Shelf size (WxD) in mm | 455 x 655 |
| Total shelf surface | 22.5 m² |
| Shelf spacing | 50 mm |
| Shelf heating | YES programable or automatic |
| Cooling | Air-cooled hermetic single compressor system |
| User interface | Siemens HMI |
| Door | Metal with 3 observation ports |
| Temperature probe | Shelf temperature |
| Condenser temperature | |
| Material temperature | |
| Vacuum | Pirani vacuum gauge |
| Vacuum pump | Dry + oil vane combo |
| Power supply | 3 x 400 V 50 Hz |
| Wattage (kW) | 60 |
