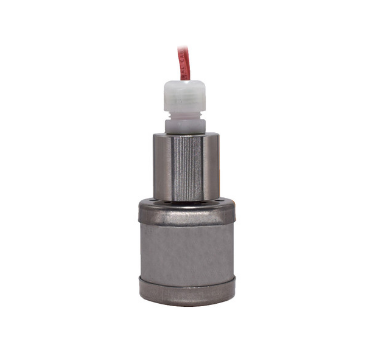

LS-750 Series Single Point Float Level Switch

• Ideal for Use in Oils and Water
• Slosh Shield
• Supplied with Waterproof Cable

LS-750 Series Single-Point Level Switch units are ideal for use in oils and water. With a compact-sized float, slosh shield and weighted collar, the LS-750 provides liquid level detection for a wide variety of applications. Suspend in stand pipes or sumps for leak detection duty or drop into wells for ground-water monitoring. Supplied with 25 feet (7.62 m) of waterproof cable.Product Line
Level Sensors & Switches

Actuation Level

• 0.75

Electrical Termination

• 25' Long, 22 AWG, (2) Conductor PVC Cable

Float Diameter Range

• 1.4375 in

Float Material

• Buna N

Maximum Pressure Rating

• 150 PSI

Minimum Liquid Specific Gravity

• 0.45

Model Type

• LS-750

Mounting Type

• Suspended

Mounting Orientation

• Vertical

Primary Material Of Construction

• Alloy

Sensor Type

• Float

Stem & Mounting Material

• Brass

Switch Operation

• Normally Closed
• (Non-Reversible)

Switch Type

• SPST (20 VA)

Wetted Material

• Berylium Copper - Replace
• Nylon
• Brass
• Nylon
• Berylium Copper - Replace 2
• Buna N
• PVC
• Buna N
• PVC

Product Family

• Single-Point Level Switch

Product Type

• Single Point

Maximum Operating Temperature [°F]

• 230 °F

Minimum Operating Temperature [°F]

• -40 °F
