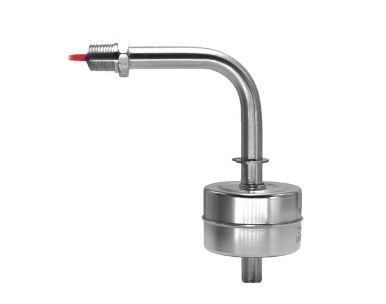

LS-77700 Series Single Point Float Level Switch

• Nylon is Ideal for Oils and Fuels
• Polypropylene is Ideal for Potable Water and Broad Chemicals
• Versaplast is ideal for corrosive fluids

LS-77700 Series Single-Point Level Switches perform in liquids with specific gravities as low as 0.45; switches protrude into tank less than 3 inches (76 mm).

Product Line

• Level Sensors & Switches

Actuation Level

• 2 3/8 in
• 2 in

Electrical Termination

• 24" Long, 22 AWG, Teflon Leads

Float Diameter Range

• 1 to 1.5 in

Float Material

• Buna N
• 316 Stainless Steel

Maximum Operating Pressure

• 300 PSI

Minimum Liquid Specific Gravity

• 0.45
• Mounting Orientation
• Horizontal

Mounting Type

• 1/8" NPT Male
• 3/8"-24 UNF-2A

Primary Material Of Construction

• Alloy

Sensor Type

• Float

Stem & Mounting Material

• Stainless Steel
• Brass

Switch Operation

• Normally Open
• (Non-Reversible)

Switchs

• SPST (20 VA)

Wetted Float Material

• 316 Stainless Steel, Buna N, PH-15-7-MO Stainless Steel
• 316 Stainless Steel, PH-15-7-MO Stainless Steel
• Brass, 316 Stainless Steel, Berylium Copper
• Brass, Buna N, Berylium Copper

Product Family

• Single-Point Level Switch

Product Type

• Single Point

Maximum Operating Temperature [°F]

• 300 °F

Minimum Operating Temperature [°F]

• -40 °F
