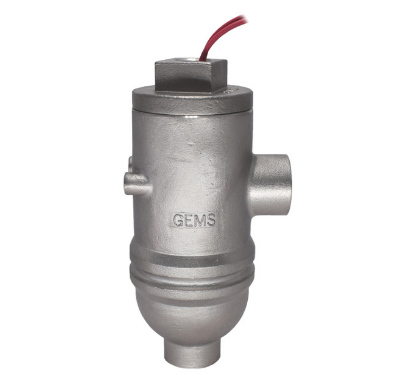

LS-800-5 Series Single Point Float Level Switch

• Ideal for Large or Small Tanks
• Mounts Outside the Tank
• 3/4" Brass or Stainless-Steel NPT Ports

LS-800-5 Series Single-Point Level Switches are ideal for large or small tanks where internal access is impractical. They mount externally at the actuation point and are available with 3/4" NPT brass or stainless-steel ports.

Product Line

• Level Sensors & Switches

Actuation Level

• 3/4 in
• 7/16 in

Electrical Termination

• 24" Long, 18 AWG, Polymeric Leads

Float Diameter Range

• 2.0625 in

Float Material

• 316 Stainless Steel

Maximum Pressure Rating

• 750 PSI
• 150 PSI

Maximum Operating Pressure

• 750 PSI

Minimum Liquid Specific Gravity

• 0.75

Minimum Specific Gravity

• 0.55

Mounting Orientation

• Vertical, External

Mounting Type

• 3/4" NPT Female

Primary Material Of Construction

• Alloy

Sensor Type

• Float

Stem & Mounting Material

• Stainless Steel
• Brass
• BR

Switch Operation

• Normally Open (Reversible)

Switchs

• SPST (100 VA)
• SPST (20 VA)

Wetted Float Material

• 316 Stainless Steel, S.S. ARMCO H-15-7-MO
• Brass, 316 Stainless Steel, Berylium Copper

Product Family

• Single-Point Level Switch

Product Type

• Single Point

Maximum Operating Temperature [°F]

• 300 °F

Minimum Operating Temperature [°F]

• -40 °F

Operating Temperature Range [°F]

• 230°F max
• 300°F max
