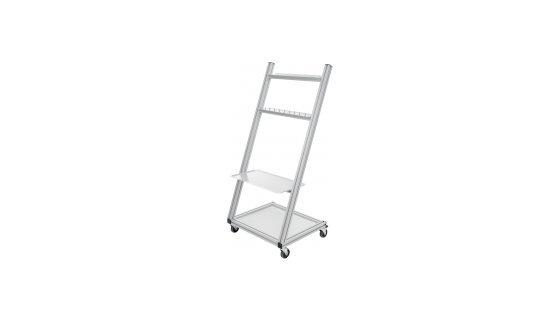

MHW 6836 / BASIS PLUS

• Laboratory- and test lead trolley
• base frame / base trolley composed of frame profiles, base plate (max. load capacity: 30 kg), , antistatic tires (2 lockable) and:

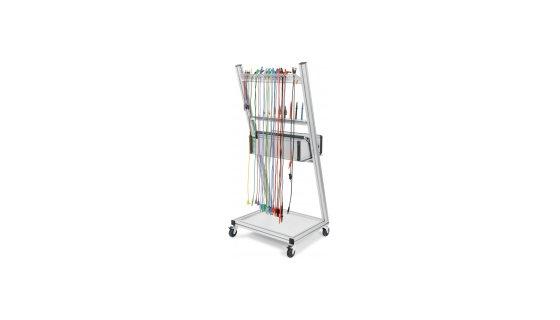

• 1 shelf, 520 × 165 mm with cable slots, on intermediate supports, for the storage of up to 120 measuring leads. Max. load capacity: 10 kg
• 1 shelf, 520 × 169 mm, on intermediate supports for the storage and plug-in of test probes and other test accessoires on Ø 4 mm lamella-basket plugs. Max. load capacity: 10 kg

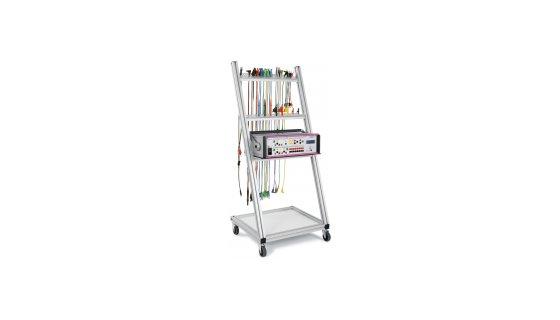

• 1 shelf, 520 × 300 mm, on intermediate supports or the storage of measurement instruments and -equipment. Max. load capacity: 20 kg
• please visit www.schuetzinger.de to find the assembly instruction MA 009

• Order No. MHW 6836 / BASIS PLUS
