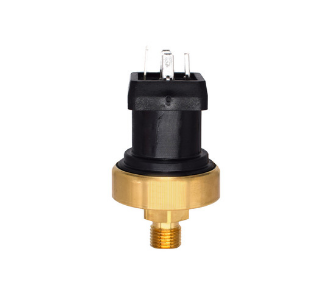

PS11 Series Low Pressure Switch

• 0.75 to 15 psi (.051 to 1 bar)
• Adjustable or Factory Setpoint
• 1000000 Cycle Life Typical
• Formerly PDPA/PDPF

PS11 Series Low Pressure Switches are ideal for low pressure applications. These switches have a life expectancy of 1 million cycles making them extremely reliable. Their snap-action microswitch resets automatically and meets or exceeds industry standards. Brass housing offers chemical resistance at an affordable price.

Product Line

• Pressure Sensors & Switches

Pressure Range

• 0.75-4 PSI (51-276 MBAR)

Pressure Fitting Material

• Brass

Circuit Condition

• SPDT
• SPST/NC
• SPST/NO

Electrical Termination

• DIN 43650A 9mm Cable Clamp
• Flying Leads
• 1/2˝ Male NPT Conduit w/Flying Leads
• DIN 43650A with 1/2" Female NPT Conduit
• DIN 43650A Male Half Only

Product Family

• Low Pressure Switch

Product Type

• General Purpose - Pressure Switch

Maximum Operating Temperature [°F]

• 0 °F

Minimum Operating Temperature [°F]

• 0 °F

Operating Temperature Range [°F]

• -40°F up to 250°F (-40°C up to 121°C)
