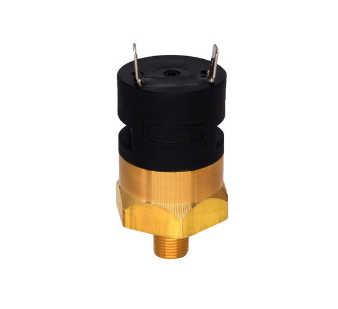

PS41 Series Pressure Switch

• 3.5 to 100 psi (0.24 to 7 bar)
• Field Adjustable
• Economical

PS41 Series Pressure Switches are designed for demanding applications where space and/or price are a concern. These switches utilize a piston/diaphragm design, which incorporates the high proof pressure of piston technology with the sensitivity of diaphragm designs. Switches are field adjustable via an Allen head screw that is hidden to protect against unauthorized tampering.

Product Line

• Pressure Sensors & Switches

Pressure Range

• 0.75-4 PSI (51-276 MBAR)
• 4-100 PSI (0.28-2.07 BAR)

Flow Setting Type

• Adjustable

Set Point

• 0

Set Point Accuracy

• +/-0.35 psi +2% of setting
• +/-2 psi +2% of setting
• +/-0.8 +2% of setting

Pressure Fitting Material

• Brass
• 316 Stainless Steel

Diaphragm Material

• Nitrile

Proof Pressure

• 350 PSI

Burst Pressure

• 700 PSI

Switch Rating

• 5 Amps

Switch Type

• SPDT

Circuit Condition

• SPDT
• SPST/NC
• SPST/NO

Electrical Termination

• DIN 43650A 9mm Cable Clamp
• Flying Leads
• DIN 43650A with 1/2" Female NPT Conduit
• DIN 43650A Male Half Only
• Right Angle DIN 43650A 9mm Cable Clamp
• Right Angle DIN 43650A Male Half Only
• Flying Leads w/ PVC Shrink Tubing
• Spade Terminals
• Right Angle DIN 43650A with 1/2" Female NPT Conduit
• 18 AWG PVC Cable

Ingress Protection Rating

• IP65

Burst Pressure

• 700 PSI

Switch Ratings Range

• 5 amps

Product Family

• Pressure Switch

Product Type

• General Purpose - Pressure Switch

Maximum Operating Temperature [°F]

• 185 °F

Minimum Operating Temperature [°F]

• 0 °F

Operating Temperature Range [°F]

• -40°F up to 250°F (-40°C up to 121°C)
• -10°F up to 250°F (-23°C up to 121°C)
