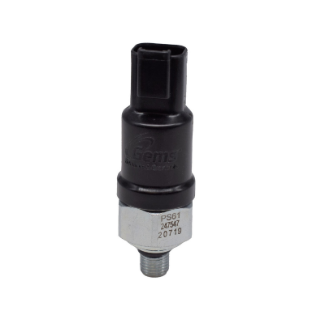

PS61 Series Pressure Switch

• 10 to 4350 psi (0.7 to 300 bar)
• Exceptional Size-to Pressure-Range Ratio
• Perfect for Demanding Applications

PS61 Series Pressure Switches are designed for OEM applications and are available with enhanced ingress protection (IP) to IPX7, IPX9K, and IP6KX and integral electrical connections. PS61 Pressure Switches can withstand temperatures up to 250°F (121°C).These subminiature pressure switches are suitable for a wide range of hydraulic and pneumatic applications including medical and general industry.

Product Line

• Pressure Sensors & Switches

Fluid Temperature Range

• -22°F to +250°F

Ambient Temperature Range

• -40°F to +250°F

Storage Temperature Range [°F]

• -65°F to +275°F

Pressure Range

• 10- 4350 PSI (0.7-300 BAR)

Flow Setting Type

• Adjustable

Set Point

• 0

Set Point Accuracy

• +/-1.5 psi +3% of setting
• +/-0.35 psi +2% of setting
• +/-3.75 psi +3% of setting
• +/-2 psi +2% of setting
• +/-8 psi +3% of setting
• +/-5 psi +3% of setting
• +/-2.5 psi +3% of setting
• +/-0.8 +2% of setting
• +/-13 psi +3% of setting

Pressure Fitting Material

• 316 Stainless Steel
• 12L14 Zinc-Plated Steel

Diaphragm Material

• Nitrile

Proof Pressure

• 6000 psi
• 350 PSI

Burst Pressure

• 9000 psi
• 700 PSI

Switch Rating

• 100 VA
• 5 Amps

Switch Type

• SPST
• SPDT

Circuit Condition

• SPST/NC
• SPST/NO

Electrical Termination

• DIN 43650A 9mm Cable Clamp
• Terminal Screws
• 18" Flying Leads
• Spade Terminals
• 2x 1/4˝ x 1/32˝ Spade
• 18 AWG Flying Leads, Adjustable
• 18 AWG Flying Leads w/ PVC Tubing Factory Set
• 18 AWG Flying Leads w/ PVC Shrink Tubing, Factory Set
• 18 AWG Flying Leads w/ PVC Shrink Tubing, Adjustable
• Deutsch DT04-2P Integral Male, Factory Set
• 6-32 Terminal Screws
• 18 AWG Flying Leads w/ PVC Shrink Tubing
• 18 AWG PVC Cable
• Deutsch DT04-2P Integral Male
• 18 AWG Flying Leads, Factory Set
• Amp Superseal 1.5 Integral Male

Ingress Protection Rating

• IP00
• 0
• IP65

Storage Temperature Range

• -65°F to +275°F

Product Family

• Pressure Switch

Product Type

• General Purpose - Pressure Switch

Maximum Operating Temperature [°F]

• 185 °F

Minimum Operating Temperature [°F]

• 0 °F

Operating Temperature Range [°F]

• -10°F up to 250°F (-23°C up to 121°C)
