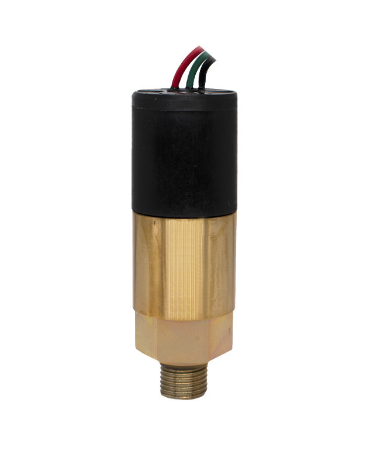

PS75 Series Pressure Switch

• 5 to 6000 psi (0.35 to 414 bar)
• Wear Disc Design for Longer Life

PS75 Series Pressure Switches have all metal surfaces for overload stops and deliver reliable operation under extremely high pressure surges. They are designed with a wear disc and cushioning ring for increased life. PS75 use a piston/diaphragm design which combines the high proof pressure of piston technology with the sensitivity of a diaphragm design. They can be field or factory adjusted.

Product Line

• Pressure Sensors & Switches

Pressure Range

• 10- 4350 PSI (0.7-300 BAR)

Pressure Fitting Material

• 316 Stainless Steel
• 12L14 Zinc-Plated Steel

Circuit Condition

• SPDT
• SPST/NC
• SPST/NO

Electrical Termination

• DIN 43650A 9mm Cable Clamp
• Right Angle DIN 43650A 9mm Cable Clamp
• DIN 43650A Male Half Only
• Right Angle DIN 43650A Male Half Only
• Right Angle DIN 43650A with 1/2" Female NPT Conduit
• DIN 43650A with 1/2" Female NPT Conduit
• Flying Leads
• 1/2˝ NPT Male Conduit w/Flying Leads
• Flying Leads w/ PVC Shrink Tubing

BurstPressure

• 700 PSI

Switch Ratings Range

• 5 amps

Termination

• H

Product Family

• Pressure Switch

Product Type

• General Purpose - Pressure Switch

Maximum Operating Temperature [°F]

• 0 °F

Minimum Operating Temperature [°F]

• 0 °F

Operating Temperature Range [°F]

• -22°F up to 250°F (-30°C up to 121°C)
