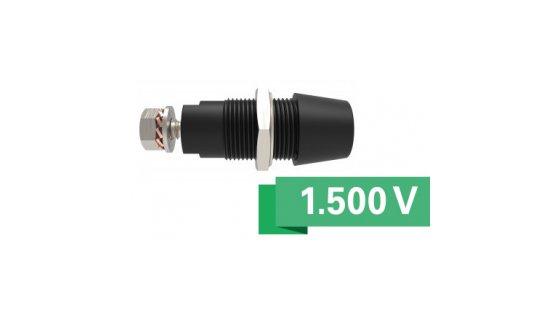

SAB 9430 Ni

• Safety threaded socket
• for fixture into panels up to 3 mm thick
• fixed by: hexagon nut M12 x 0.75 and spring washer
• hole Ø 12.2+0.1 mm
• please visit www.schuetzinger.de to find the assembly instruction MA 028 and the warning notice WH 062

• Order No. SAB 9430 Ni / ..(colour)
• contact parts nickel-plated
• insulation PA 6.6 (Polyamid) UL94 - V2
• fastening nut(hexagon nut) M12 x 0.75
• colours see table

• Order No. SAB 9430 Au / ..(colour)
• as above
• contact parts gold-plated
• colours see table

• MA 028
• WH 062
