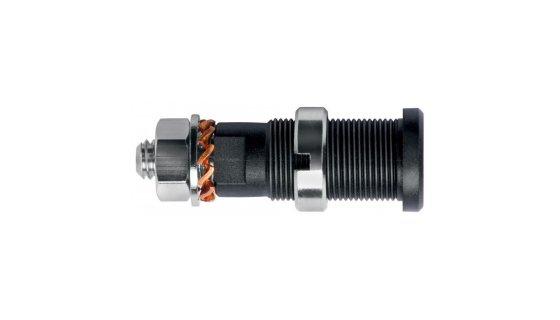

SEB 3401 Ni

• Safety threaded socket
• for fixture in panels up to 9 mm thickness
• fixed by: slotted nut M8 x 0.5
• hole Ø 8.2
• fixture using special tool MWZ 4 and allen key 6-kant 1.5, see chapter accessories
• please visit www.schuetzinger.de to find the assembly instruction MA 006 and the warning notice WH 004

• Order No. SEB 3401 Ni / ..(colour)
• contact parts nickel-plated
• insulation PA 6.6 (Polyamid)
• fastening nut(slotted nut) nickel-plated
• colours see table

• Order No. SEB 3401 Au / ..(colour)
• as above
• contact parts gold-plated
• colours see table

• Ma 006
• WH 004
