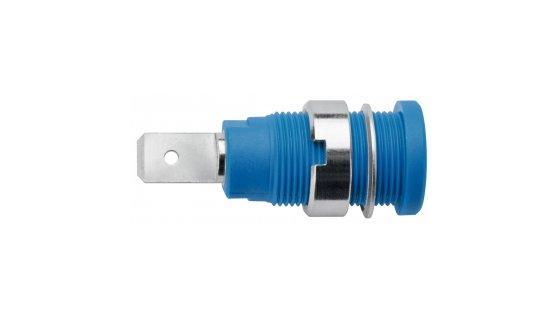

SEB 6452 Ni

• Safety threaded socket
• for fixture in panels up to 6 mm thick
• fixed by: slotted nut M12 x 0.75 and spring washer
• hole Ø 12.2+0.1 mm
• flat tab can be bent up to 90º once
• turned part
• fixture using special tools MWZ 8 and MWZ 15, see chapter accessories
• please visit www.schuetzinger.de to find the assembly instruction MA 007 and the warning notice WH 005

• Order No. SEB 6452 Ni / ..(colour)
• contact parts nickel-plated
• insulation PA 6.6 (Polyamid) UL94 - V2
• fastening nut(slotted nut) M12 x 0.75
• colours see table

• Order No. SEB 6452 Au / ..(colour)
• as above
• contact parts gold-plated
• colours see table

• MA 007
• WH 005
