SEPB 6451 Ni
SEPB 6451 Ni

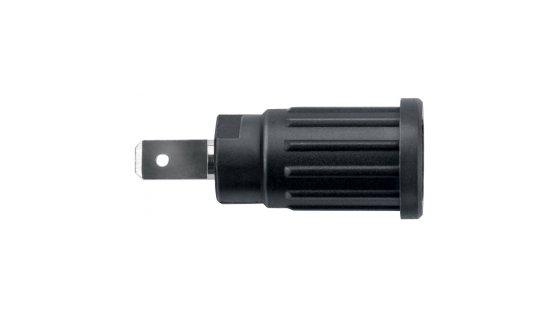

- Safety press-in socket
- for pressing into panels up to 6 mm thick
- location hole Ø 12.2±0.1 mm, countersunk one-sided (approx. 0.5 x 45°)
- panel thickness:
plastic panels: ≥ 2 mm
- flat tab, can be bent up to 90° once
- turned part
- fixture using special tool MWZ 13, see chapter accessories
- please visit www.schuetzinger.de to find the assembly instruction MA 005
- Order No. SEPB 6451 Ni / ..(colour)
- contact parts nickel-plated
- insulation PA 6.6 (Polyamid) UL94 - V2
- colours see table
- Order No. SEPB 6451 Au / ..(colour)
- as above
- contact parts gold-plated
- colours see table
- MA 005
