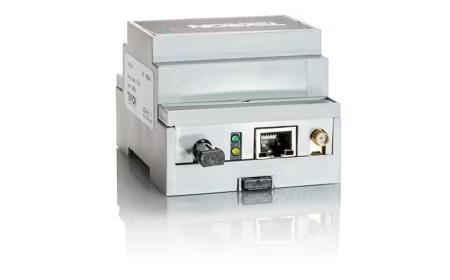

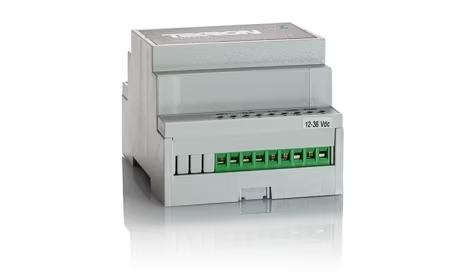

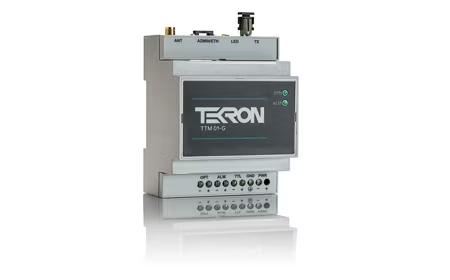

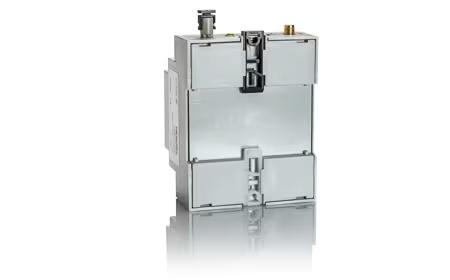

TTM 01-G Compact Substation Clock

TTM 01-G Compact Substation Clock

The TTM 01-G is a reliable and accurate GNSS (GPS/GLONASS) DIN rail-mounted clock with sub-microsecond timing that is used to synchronize IEDs (Intelligent Electronic Devices) in the power industry. As with all Tekron GPS clocks, the TTM 01-G has electrically isolated outputs, providing excellent noise immunity and transients protection. The TTM 01-G supports Network Time Protocol (NTP), PTP (IEEE® 1588v2-2008) and, IRIG-B and is perfect for installations with limited mounting space.

Key Features

  • GPS and GLONASS support
  • Independently isolated outputs
  • Isolated power supply
  • Precision Time Protocol (IEEE® 1588v2:2008) server/client function
  • Network Time Protocol (NTP) and Simple Network Time Protocol (SNTP) support
  • UTC and LST with user defined daylight savings time settings.
  • Remote configuration and upgrades over Ethernet
  • Configuration encryption and security
  • DIN Rail Mounted
  • Low noise characteristics due to balanced pair distribution


  • DC IRIG-B (Un-modulated, DCLS)
  • AM IRIG-B (Modulated)
  • Serial Strings
  • User defined pulses
  • Modified Manchester
  • NTP/ SNTP (IEC 61850)
  • PTP (IEEE 1588 v2)
  • DCF77
  • Fiber output option
