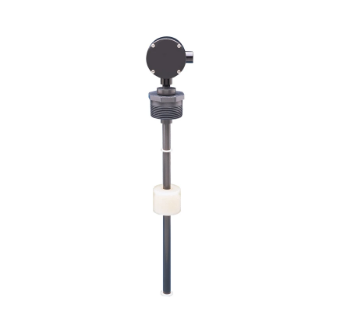

XMP-XTP800 Series Continuous Float Level Sensor

• PVC or Polypropylene
• 1/4 in. (6 mm) Resolution
• Lengths to 70 in. (1778 mm)

The XMP-XTP800 Series Continuous Level Sensors provide reliable liquid level monitoring in chemical tanks and corrosive environments. The XMP-XTP800 Series adds signal conditioning for seamless integration with digital bar-graph displays or other instrumentation and control systems, making it ideal for industrial and chemical process applications.

Product Line

• Level Sensors & Switches

Model Type

• XMP/XTP-800

Sensor Type

• Continuous Float Level Transmitters

Resolution

• 1/4"
• 1/4˝ Resolution
• 1/4in

Pressure

• Up to 50 psi
• 150 psi (10 bar)

Primary Material Of Construction

• PVC
• Polypropylene
• 316 Stainless Steel

Length Overall (LO)

• Up to 70" max.

Indication Range

• Up to 51in

Minimum Specific Gravity

• 0.59

Product Family

• Continuous Level Sensor

Product Type

• Continuous

Operating Temperature Range [°F]

• Up to 140°F (60°C)
• Up to 170°F (76.7°C)
• -40°F to 230°F (-40°C to 110°C)
